AC Inverters - ACS580

Wall-mounted inverters, Inverter Modules, Cabinet-built Inverters, Filters and Accessories

ABB AC Inverters

Effortless energy efficiency for your applications
A new generation, all-compatible, wall-mounted and cabinet-built drive simplifies your processes and motor control with effortless efficiency. Allowing you to control a wide range of applications in different industries, with straightforward set up or commissioning. ACS580 is part of ABB’s all-compatible drives portfolio, sharing the same architecture and user interfaces for easy usability. The ACS580 is plug-in ready to control your compressors, conveyors, mixers, pumps, fans and many other variable and constant torque applications.

Highlights
  • Easy to select, install and use
  • Scalable offering
  • All essential features built into the drive
  • Straightforward settings menu and assistants for fast commissioning
  • Energy efficiency features for optimal energy use
  • Connect to any automation system or use stand-alone
  • Wide availability and support
  • Designed for reliability and consistent high quality

    • Index

    1.1. ACS580-01

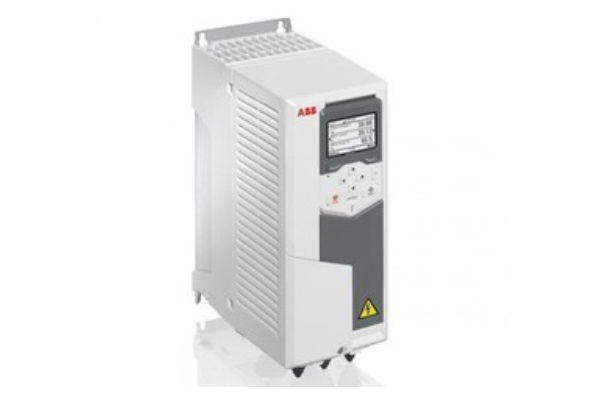

    Wall-mounted inverters
    1.2. ACS580-04
    Inverter Modules
    1.1. ACS580-07

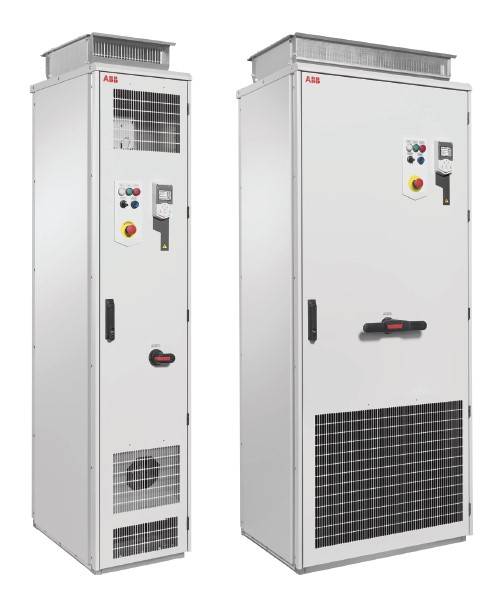

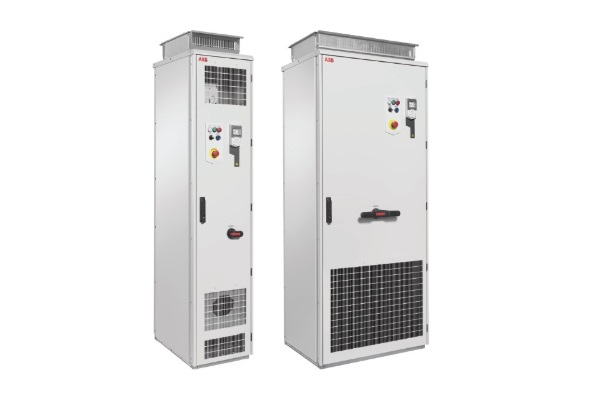

    Cabinet-built Inverters
    2. du/dt Filters

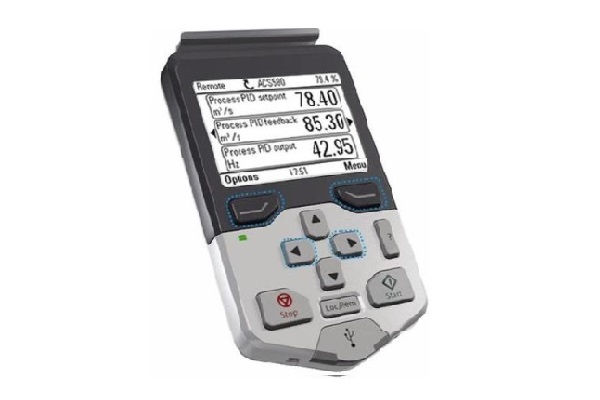

    3. Control Panel
    Options
    4. Fieldbus adapters
    5. I/O options
    6. Accessories
    7. Documents
    Catalog

    1.1 Wall-mounted inverters ACS580-01


    (back to index)▲

    Built-in Brake Chopper Without Brake Chopper
    R1 R2 R3 R4 R5 R6 R7 R8 R9
    Product Code ACS580-01-02A7-4
    		 ACS580-01-03A4-4
    		 ACS580-01-04A1-4
    		 ACS580-01-05A7-4
    		 ACS580-01-07A3-4
    		 ACS580-01-09A5-4
    		 ACS580-01-12A7-4
    		 ACS580-01-018A-4
    		 ACS580-01-026A-4
    		 ACS580-01-033A-4
    		 ACS580-01-039A-4
    		 ACS580-01-046A-4
    		 ACS580-01-062A-4
    		 ACS580-01-073A-4
    		 ACS580-01-088A-4
    		 ACS580-01-106A-4
    		 ACS580-01-145A-4
    		 ACS580-01-169A-4
    		 ACS580-01-206A-4
    		 ACS580-01-246A-4
    		 ACS580-01-293A-4
    		 ACS580-01-363A-4
    		 ACS580-01-430A-4
    Nominal Ratings 2.6 A
    0.75 kW    		 3.3 A
    1.1 kW    		 4 A
    1.5 kW    		 5.6 A
    2.2 kW    		 7.2 A
    3 kW    		 9.4 A
    4 kW    		 12.6 A
    5.5 kW    		 17 A
    7.5 kW    		 25 A
    11 kW    		 32 A
    15 kW    		 38 A
    18.5 kW    		 45 A
    22 kW    		 62 A
    30 kW    		 73 A
    37 kW    		 88 A
    45 kW    		 106 A
    55 kW    		 145 A
    75 kW    		 169 A
    90 kW    		 206 A
    110 kW    		 246 A
    132 kW    		 293 A
    160 kW    		 363 A
    200 kW    		 430 A
    250 kW
    380-415
    Vac    		 Light
    Overload    		 2.5 A
    0.75 kW    		 3.1 A
    1.1 kW    		 3.8 A
    1.5 kW    		 5.3 A
    2.2 kW    		 6.8 A
    3 kW    		 8.9 A
    4 kW    		 12 A
    5.5 kW    		 16.2 A
    7.5 kW    		 23.8 A
    11 kW    		 30.4 A
    15 kW    		 36.1 A
    18.5 kW    		 42.8 A
    22 kW    		 58 A
    30 kW    		 68.4 A
    37 kW    		 82.7 A
    45 kW    		 100 A
    55 kW    		 138 A
    75 kW    		 161 A
    90 kW    		 196 A
    110 kW    		 234 A
    132 kW    		 278 A
    160 kW    		 345 A
    200 kW    		 400 A
    200 kW
    Heavy
    Duty    		 1.8 A
    0.55 kW    		 2.6 A
    0.75 kW    		 3.3 A
    1.1 kW    		 4 A
    1.5 kW    		 5.6 A
    2.2 kW    		 7.2 A
    3 kW    		 9.4 A
    4 kW    		 12.6 A
    5.5 kW    		 17 A
    7.5 kW    		 24.6 A
    11 kW    		 31.6 A
    15 kW    		 37.7 A
    18.5 kW    		 44.6 A
    22 kW    		 61 A
    30 kW    		 72 A
    37 kW    		 87 A
    45 kW    		 105 A
    55 kW    		 145 A
    75 kW    		 169 A
    90 kW    		 206 A
    110 kW    		 246 A
    132 kW    		 293 A
    160 kW    		 363 A
    200 kW
    440-480
    Vac    		 Light
    Overload    		 2.1 A
    1 HP    		 3 A
    1.5 HP    		 3.4 A
    2 HP    		 4.8 A
    3 HP    		 6 A
    3 HP    		 7.6 A
    5 HP    		 11 A
    7.5 HP    		 14 A
    10 HP    		 21 A
    15 HP    		 27 A
    20 HP    		 34 A
    25 HP    		 40 A
    30 HP    		 52 A
    40 HP    		 65 A
    50 HP    		 77 A
    60 HP    		 96 A
    75 HP    		 124 A
    100 HP    		 156 A
    125 HP    		 180 A
    150 HP    		 240 A
    200 HP    		 260 A
    200 HP    		 361 A
    300 HP    		 414 A
    350 HP
    Heavy
    Duty    		 1.6 A
    0.75 HP    		 2.1 A
    1 HP    		 3 A
    1.5 HP    		 3.4 A
    2 HP    		 4 A
    3 HP    		 4.8 A
    3 HP    		 7.6 A
    5 HP    		 11 A
    7.5 HP    		 14 A
    10 HP    		 21 A
    15 HP    		 27 A
    20 HP    		 34 A
    25 HP    		 40 A
    30 HP    		 52 A
    40 HP    		 65 A
    50 HP    		 77 A
    60 HP    		 96 A
    75 HP    		 124 A
    100 HP    		 156 A
    125 HP    		 180 A
    150 HP    		 240 A
    150 HP    		 302 A
    250 HP    		 361 A
    300 HP

    1.2 Inverter Modules ACS580-04


    (back to index)▲

    R1 R2
    Product Code ACS580-04-505A-4
    		 ACS580-04-585A-4
    		 ACS580-04-650A-4
    		 ACS580-04-725A-4
    		 ACS580-04-820A-4
    		 ACS580-04-880A-4
    Nominal Ratings 505 A
    250 kW    		 585 A
    315 kW    		 650 A
    355 kW    		 725 A
    400 kW    		 820 A
    450 kW    		 880 A
    500 kW
    380-415
    Vac    		 Light
    Overload    		 485 A
    250 kW    		 575 A
    315 kW    		 634 A
    355 kW    		 715 A
    400 kW    		 810 A
    450 kW    		 865 A
    500 kW
    Heavy
    Duty    		 361 A
    200 kW    		 429 A
    250 kW    		 477 A
    250 kW    		 566 A
    315 kW    		 625 A
    355 kW    		 725 A
    400 kW
    440-480
    Vac    		 Light
    Overload    		 483 A
    400 HP    		 573 A
    450 HP    		 623 A
    500 HP    		 705 A
    600 HP    		 807 A
    700 HP    		 807 A
    700 HP
    Heavy
    Duty    		 361 A
    300 HP    		 414 A
    350 HP    		 477 A
    400 HP    		 566 A
    450 HP    		 625 A
    500 HP    		 625 A
    500 HP

    1.3 Cabinet-built Inverters ACS580-07


    (back to index)▲

    built-in C2 category EMC filter Preconfigured built-in C3 category EMC filter option
    R6 R7 R8 R9 R10 R11
    Product Code ACS580-07-145A-4
    		 ACS580-07-169A-4
    		 ACS580-07-206A-4
    		 ACS580-07-246A-4
    		 ACS580-07-293A-4
    		 ACS580-07-363A-4
    		 ACS580-07-430A-4
    		 ACS580-07-505A-4
    		 ACS580-07-585A-4
    		 ACS580-07-650A-4
    		 ACS580-07-725A-4
    		 ACS580-07-820A-4
    		 ACS580-07-880A-4
    Nominal Ratings 145 A
    75 kW    		 169 A
    90 kW    		 206 A
    110 kW    		 246 A
    132 kW    		 293 A
    160 kW    		 363 A
    200 kW    		 430 A
    250 kW    		 505 A
    250 kW    		 585 A
    315 kW    		 650 A
    355 kW    		 725 A
    400 kW    		 820 A
    450 kW    		 880 A
    500 kW
    380-415
    Vac    		 Light
    Overload    		 138 A
    75 kW    		 161 A
    90 kW    		 196 A
    110 kW    		 234 A
    132 kW    		 278 A
    160 kW    		 345 A
    200 kW    		 400 A
    200 kW    		 485 A
    250 kW    		 575 A
    315 kW    		 634 A
    355 kW    		 715 A
    400 kW    		 810 A
    450 kW    		 865 A
    500 kW
    Heavy
    Duty    		 105 A
    55 kW    		 145 A
    75 kW    		 169 A
    90 kW    		 206 A
    110 kW    		 246 A
    132 kW    		 293 A
    160 kW    		 363 A
    200 kW    		 361 A
    200 kW    		 429 A
    250 kW    		 477 A
    250 kW    		 566 A
    315 kW    		 625 A
    355 kW    		 725 A
    400 kW
    440-480
    Vac    		 Light
    Overload    		 124 A
    100 HP    		 156 A
    125 HP    		 180 A
    150 HP    		 240 A
    200 HP    		 260 A
    200 HP    		 361 A
    300 HP    		 414 A
    350 HP    		 483 A
    400 HP    		 573 A
    450 HP    		 623 A
    500 HP    		 705 A
    600 HP    		 807 A
    700 HP    		 807 A
    700 HP
    Heavy
    Duty    		 96 A
    75 HP    		 124 A
    100 HP    		 156 A
    125 HP    		 180 A
    150 HP    		 240 A
    150 HP    		 302 A
    250 HP    		 361 A
    300 HP    		 361 A
    300 HP    		 414 A
    350 HP    		 477 A
    400 HP    		 566 A
    450 HP    		 625 A
    500 HP    		 625 A
    500 HP

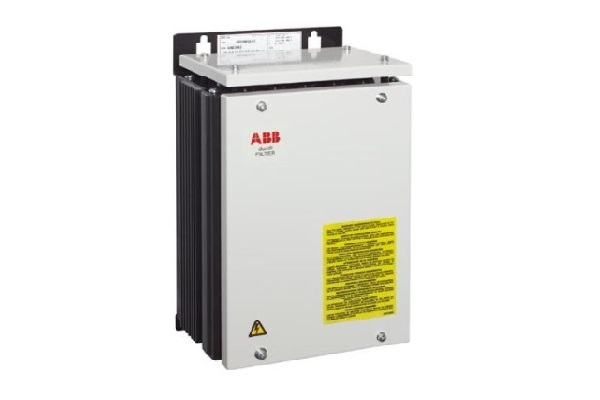

    2. du/dt Filters


    (back to index)▲

    for ACS580-01 for ACS580-04 for ACS580-07
    Inverters ACS580-01-02A7-4
    ACS580-01-03A4-4
    ACS580-01-04A1-4
    ACS580-01-05A7-4
    ACS580-01-07A3-4
    ACS580-01-09A5-4
    ACS580-01-12A7-4
    		 ACS580-01-018A-4
    ACS580-01-026A-4
    		 ACS580-01-033A-4
    ACS580-01-039A-4
    ACS580-01-046A-4
    ACS580-01-062A-4
    		 ACS580-01-073A-4
    ACS580-01-088A-4
    ACS580-01-106A-4
    		 ACS580-01-145A-4
    ACS580-01-169A-4
    ACS580-01-206A-4
    ACS580-01-246A-4
    ACS580-01-293A-4
    		 ACS580-01-363A-4
    ACS580-01-430A-4
    		 ACS580-04-505A-4
    ACS580-04-585A-4
    ACS580-04-650A-4
    		 ACS580-04-725A-4
    ACS580-04-820A-4
    ACS580-04-880A-4
    		 ACS580-07-0145A-4
    ACS580-07-0169A-4
    ACS580-07-0206A-4
    		 ACS580-07-0246A-4
    ACS580-07-0293A-4
    ACS580-07-0363A-4
    ACS580-07-0430A-4
    		 ACS580-07-505A-4
    ACS580-07-0585A-4
    ACS580-07-0650A-4
    ACS580-07-0725A-4
    ACS580-07-0820A-4
    ACS580-07-0880A-4
    Filter Units
    		 NOCH0016-60 NOCH0030-60 NOCH0070-60 NOCH0120-60 FOCH0260-70 FOCH0320-50 FOCH0610-70 FOCH0875-70 COF-01 COF-02 BOCH-0880A-7
    NOCH0016-62 NOCH0030-62 NOCH0070-62 NOCH0120-62 - - - - - - -
    NOCH0016-65 NOCH0030-65 NOCH0070-65 NOCH0120-65 - - - - - - -

    3. Control panel options


    (back to index)▲

    Option +J400 +J425 +J429 +J404 +J424 3AXD50000004419 3AUA0000108878 3AXD50000009374 3AXD50000016230 3AXD50000010763
    Function Assistant control panel (+J400
    option automatically included)    		 Industrial Assistant
    control panel    		 Control panel with
    Bluetooth interface    		 Basic control panel Blank control panel cover (no
    control panel delivered)    		 Panel bus adapter Control panel mounting platform
    (flush mounted, requires also
    panel bus adapter on the drive)    		 Control panel mounting platform
    (surface mounted, requires also
    panel bus adapter on the drive)    		 Control panel mounting platform option,
    only for ACS580-04 modules    		 Door mounting kit for the
    panel (for one drive, contains
    both DPMP-02 and CDPI-01)
    Product ID ACS-AP-S
    		 ACS-AP-I
    		 ACS-AP-W
    		 ACS-BP-S
    		 CDUM-01
    		 CDPI-01
    		 DPMP-01
    		 DPMP-02
    		 DPMP-03
    		 DPMP-EXT


    4. Fieldbus Adapters


    (back to index)▲

    Option +K451 +K454 +K457 +K458 +K462 +K469 +K470 +K473 +K475 +K490 +K491 +K492
    Fieldbus protocol DeviceNet® PROFIBUS DP.
    DPV0/DPV1    		 CANopen® Modbus RTU ControlNet EtherCAT® POWERLINK EtherNet/IP®
    Modbus TCP
    PROFINET IO    		 2 x port EtherNet/IP™
    Modbus TCP
    PROFINET IO    		 2 x Ethernet/IP ports 2 x Modbus/TCP ports 2 x PROFINET IO ports
    Adapters FDNA-01
    		 FPBA-01
    		 FCAN-01
    		 FSCA-01
    		 FCNA-01
    		 FECA-01
    		 FEPL-02
    		 FENA-11
    		 FENA-21
    		 FEIP-21
    		 FMBT-21
    		 FPNO-21


    5. I/O options


    (back to index)▲

    Option +L501 +L523 +L512 +L537 +L500

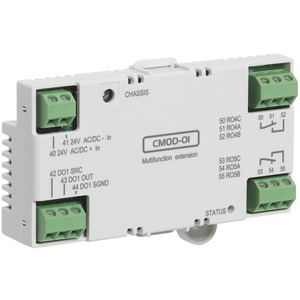

    Description External 24 V AC-DC

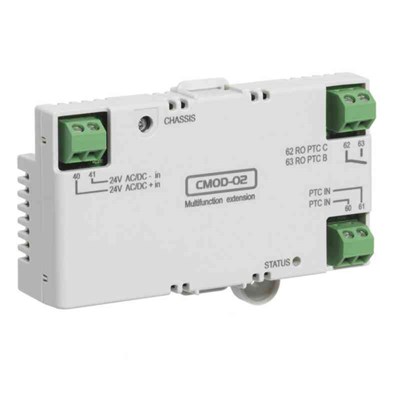

    2 x RO and 1 x DO    		 External 24 V

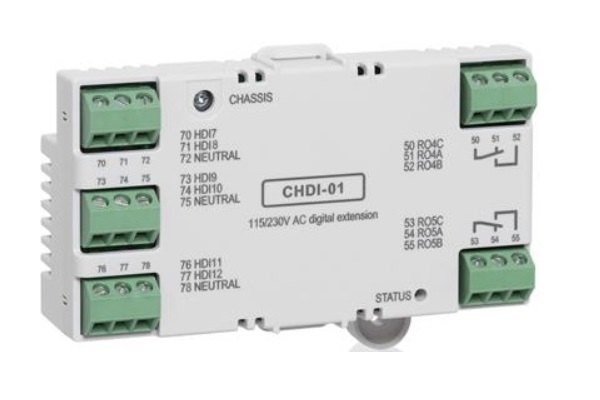

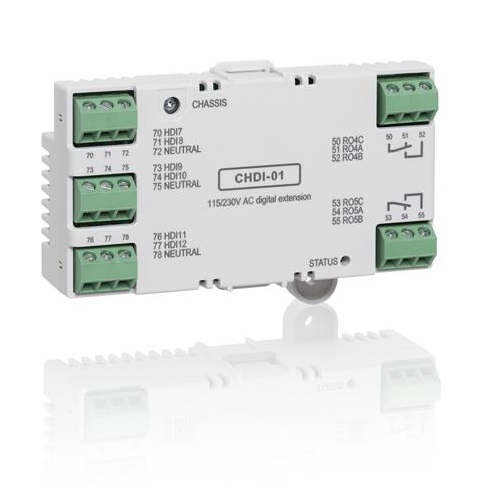

    isolated PTC interface    		 115/230 V digital input
    6 x DI and 2 x RO    		 ATEX certified
    PTC interface
    and external 24V    		 Bipolar analog I/O
    extension module
    Product ID CMOD-01
    		 CMOD-02
    		 CHDI-01

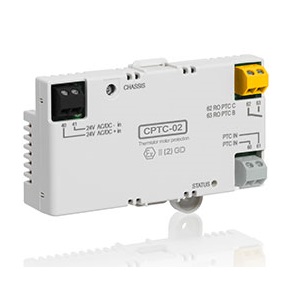

    		 CPTC-02
    		 CBAI-01


    6. Accessories


    (back to index)▲

    Cold configurator adapter
    packed kit    		 2 x panel bus interface
    2 x 32 = max. 64 drives
    2 x Ethernet interface
    SD memory card
    USB port for WLAN/3G
    CCA-01
    		 NETA-21

    7. Documentation


    (back to index)▲

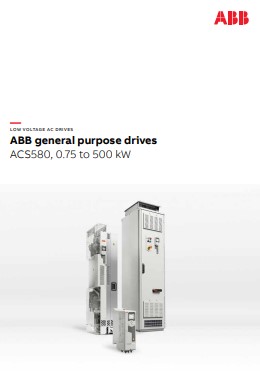

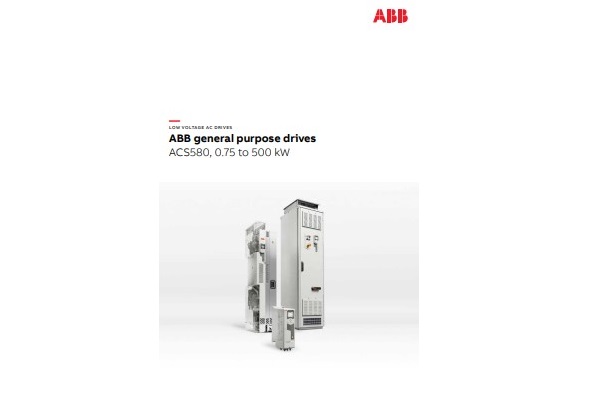

    ABB ACS580-01 Inverters Catalogue
