ABB - ACS150 Inverters product selector

ACS150 Inverters

ACS150 variable frequency drives feature an integrated control panel with LCD display and built-in speed potentiometer. For easy setup and commissioning, the drives include a variety of predefined I/O configuration macros including: ABB standard, 3-wire control, Digital input control, PID control, Hand/ Auto control, and a PLC interface. User defined macros can also be created. The ACS150 drive has an extensive list of programmable drive parameters that are used to achieve high performance with maximum versatility in many applications. ACS150 micro drives are compact with multiple mounting positions and options. The built-in DIN rail mounting capability makes them ideal for panel builders. Rapid programming and commissioning are possible using the on board setup macros. The DrivePM (Drive Parameter Manager) software tool can be used to create, edit, and copy parameter sets using the MFDT-01 FlashDrop tool. Flashdrop, an optional drive configuration tool, can be used to quickly and easily configure spares or large volumes of unpowered drives using the connection port on the front panel. FlashDrop stores up to 20 different parameter sets and can copy parameters from one drive to another, or between a PC and a drive.

Highlights
The ACS150 drive is ideal for panel builders and OEM’s needing a micro drive with low cost, flexible mounting options, and rapid parameter setup. Highlights – Power range: 0.50 to 5 Hp, single and three phase input

150% peak overload capacity

Worldwide availability and support

User-friendly control panel with LCD display and integrated potentiometer

Multiple mounting positions

PID control

Integrated 2nd environment EMC filter with disconnect option

Built-in brake chopper

Flashdrop tool for fast commissioning

Conformally coated boards

Common height and depth across the product line, for flexible installation

Wall or DIN rail mountable

Easy access to power and I/O connections for rapid installation

Selection options for input reactors, output filters, & braking resistors

UL listing includes use of ABB manual motor protectors for branch circuit protection instead of fuses

Index

1. Inverters

2. Brake Units

3. Input Reactors

4. dv/dt Output Filters

5. Documentation

1. Inverters

(back to index)▲

		200Vac-240Vac							380Vac-480Vac
		Frame size R0		Frame size R1				Frame size R2	Frame size R0		Frame size R1
Nominal Ratings		2.4 A 0.37 kW 1/2 HP	3.5 A 0.55 kW 3/4 HP	4.7 A 0.75 kW 1 HP	6.7 A 1.1 kW 1.5 HP	7.5 A 1.5 kW 2 HP		9.8 A 2.2 kW 3 HP	1.2 A 0.37 kW 1/2 HP	1.9 A 0.55 kW 3/4 HP	2.4 A 0.75 kW 1 HP	3.3 A 1.1 kW 1.5 HP	4.1 A 1.5 kW 2 HP	5.6 A 2.2 kW 3 HP	7.3 A 3 kW 4 HP	8.8 A 4 kW 5 HP
Single Phase		ACS150-01U-02A4-2	-	ACS150-01U-04A7-2	ACS150-01U-06A7-2	-	ACS150-01U-07A5-2	ACS150-01U-09A8-2	-	-	-	-	-	-	-	-
Single Phase	EMC filter	ACS150-01E-02A4-2	-	ACS150-01E-04A7-2	ACS150-01E-06A7-2	-	ACS150-01E-07A5-2	ACS150-01E-09A8-2	-	-	-	-	-	-	-	-
3-Phase		ACS150-03U-02A4-2	ACS150-03U-03A5-2	ACS150-03U-04A7-2	ACS150-03U-06A7-2	ACS150-03U-07A5-2	-	ACS150-03U-09A8-2	ACS150-03U-01A2-4	ACS150-03U-01A9-4	ACS150-03U-02A4-4	ACS150-03U-03A3-4	ACS150-03U-04A1-4	ACS150-03U-05A6-4	-	ACS150-03U-08A8-4
3-Phase	EMC filter	ACS150-03E-02A4-2	ACS150-03E-03A5-2	ACS150-03E-04A7-2	ACS150-03E-06A7-2	ACS150-03E-07A5-2	-	ACS150-03E-09A8-2	ACS150-03E-01A2-4	ACS150-03E-01A9-4	ACS150-03E-02A4-4	ACS150-03E-03A3-4	ACS150-03E-04A1-4	ACS150-03E-05A6-4	ACS150-03E-07A3-4	ACS150-03E-08A8-4

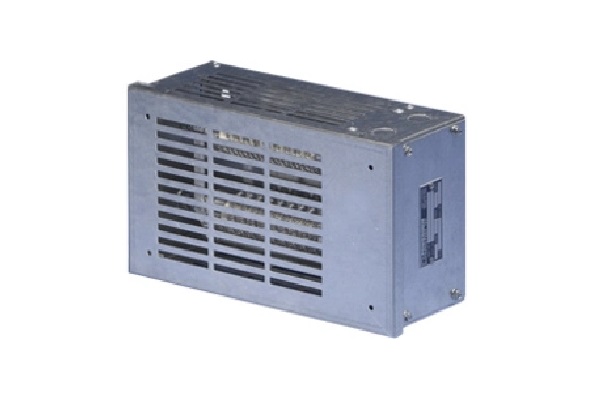

2. Brake Units

2.1 Brake Units with CR Enclosure

(back to index)▲

	Enclosure CR100					Enclosure CR150				Enclosure CR200				Enclosure CR300				Enclosure CR400
Thermal Dissipation	100 W					150 W				200 W				300 W				400 W Ω
Electrical Resistance	50 Ω	100 Ω	150 Ω	200 Ω	500 Ω	50 Ω	100 Ω	200 Ω	500 Ω	50 Ω	100 Ω	150 Ω	200 Ω	50 Ω	100 Ω	150 Ω	200 Ω	50 Ω	100 Ω	150 Ω
	P14494-CR-06	P14494-CR-04	P14494-CR-03	P14494-CR-02	P14494-CR-01	P14494-CR-12	P14494-CR-11	P14494-CR-09	P14494-CR-07	P14494-CR-18	P14494-CR-16	P14494-CR-15	P14494-CR-14	P14494-CR-24	P14494-CR-22	P14494-CR-21	P14494-CR-20	P14494-CR-32	P14494-CR-30	P14494-CR-29

2.2 Brake Units with GCE Enclosure

(back to index)▲

	Enclosure GCE1							Enclosure GCE2			Enclosure GCE3
Thermal Dissipation	200 W	300 W						600 W	820 W		1000 W Ω
Electrical Resistance	350 Ω	35 Ω	45 Ω	75 Ω	150 Ω	200 Ω	250 Ω	75 Ω	150 Ω	35 Ω	75 Ω
	P14494-10	P14494-31	P14494-24	P14494-19	P14494-15	P14494-13	P14494-11	P14494-20	P14494-16	P14494-32	P14494-21

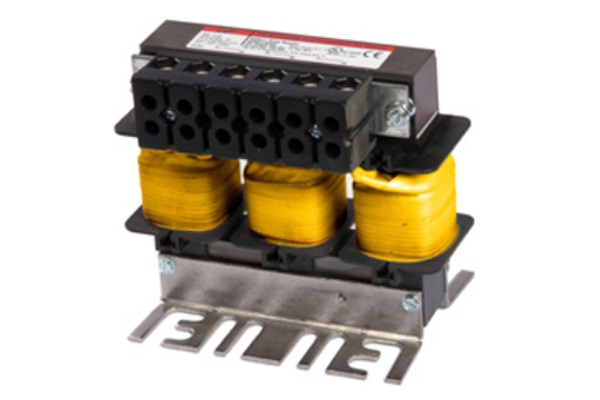

3. Input Reactors

3.1 High Impedance input reactors

3.1.1. High Impedance input reactors for Single Phase Drives - 200-240 V Applications

(back to index)▲

					KDR 5%, UL Listed, Open				KDR 5%, UL Type 1, Enclosure				KDR 5%, UL Type 3R, Enclosure
Inverter part number	Inverter rated power	Input/Output Current	Reactor part number	Reactor part number	Reactor part number	Power dissipation of the reactor	Dimensions (HxWxD)	Weight	Reactor part number	Power dissipation of the reactor	Dimensions (HxWxD)	Weight	Reactor part number	Power dissipation of the reactor	Dimensions (HxWxD)	Weight
ACS150-01U-02A4-2	1/2 HP	2.4 A	KDRA25H	KDRA25HC1	KDRULA25H	14.0 W	H4.00" x W4.18" x D3.75"	4 lbs	KDRULA25HE01	14.0 W	H4.00" x W4.18" x D3.75"	4 lbs	KDRULA25HE3R	14.0 W	H4.00" x W4.18" x D3.75"	4 lbs
ACS150-01U-04A7-2	1 HP	4.7 A	KDRA27H	KDRA27HC1	KDRULA27H	23.6 W	H4.00" x W4.18" x D3.75"	4 lbs	KDRULA27HE01	23.6 W	H4.00" x W4.18" x D3.75"	4 lbs	KDRULA27HE3R	23.6 W	H4.00" x W4.18" x D3.75"	4 lbs
ACS150-01U-06A7-2	3/2 HP	6.7 A	KDRA28H	KDRA28HC1	KDRULA28H	30.6 W	H4.00" x W4.18" x D3.75"	4 lbs	KDRULA28HE01	30.6 W	H4.00" x W4.18" x D3.75"	4 lbs	KDRULA28HE3R	30.6 W	H4.00" x W4.18" x D3.75"	4 lbs
ACS150-01U-07A5-2	2 HP	7.5 A	KDRD22H	KDRD22HC2	KDRULD22H	30.5 W	H4.00" x W4.18" x D3.75"	4 lbs	KDRULD22HE01	30.5 W	H4.00" x W4.18" x D3.75"	4 lbs	KDRULD22HE3R	30.5 W	H4.00" x W4.18" x D3.75"	4 lbs
ACS150-01U-09A8-2	3 HP	9.8 A	KDRD22H	KDRD22HC2	KDRULD22H	43.1 W	H4.00" x W4.18" x D3.75"	4 lbs	KDRULD22HE01	43.1 W	H4.00" x W4.18" x D3.75"	4 lbs	KDRULD22HE3R	43.1 W	H4.00" x W4.18" x D3.75"	4 lbs

3.1.2. High Impedance input reactors for 3-phase Drives - 200-240 V Applications

(back to index)▲

					KDR 5%, UL Listed, Open				KDR 5%, UL Type 1, Enclosure				KDR 5%, UL Type 3R, Enclosure
Inverter part number	Inverter rated power	Input/Output Current	Reactor part number	Reactor part number	Reactor part number	Power dissipation of the reactor	Dimensions (HxWxD)	Weight	Reactor part number	Power dissipation of the reactor	Dimensions (HxWxD)	Weight	Reactor part number	Power dissipation of the reactor	Dimensions (HxWxD)	Weight
ACS150-03U-02A4-2	1/2 HP	2.4 A	KDRA25H	KDRA25HC1	KDRULA25H	23.6 W	H4" x W4.18" x D3.75"	4 lbs	KDRULA25HE01	23.6 W	H12.25" x W12.5" x D6.75"	14.5 lbs	KDRULA25HE3R	23.6 W	H11.5" x W10" x D12"	19 lbs
ACS150-03U-03A5-2	3/4 HP	3.5 A	KDRA27H	KDRA27HC1	KDRULA27H	30.6 W	H4" x W4.18" x D3.75"	4 lbs	KDRULA27HE01	30.6 W	H12.25" x W12.5" x D6.75"	14.5 lbs	KDRULA27HE3R	30.6 W	H11.5" x W10" x D12"	19 lbs
ACS150-03U-04A7-2	1 HP	4.7 A	KDRA26H	KDRA26HC1	KDRULA26H	30.5 W	H4" x W4.18" x D3.75"	4 lbs	KDRULA26HE01	30.5 W	H12.25" x W12.5" x D6.75"	14.5 lbs	KDRULA26HE3R	30.5 W	H11.5" x W10" x D12"	19 lbs
ACS150-03U-06A7-2	3/2 HP	6.7 A	KDRB25H	KDRB25HC1	KDRULB25H	53.1 W	H5" x W6" x D4"	8 lbs	KDRULB25HE01	53.1 W	H12.25" x W12.5" x D6.75"	18.5 lbs	KDRULB25HE3R	53.1 W	H11.5" x W10" x D12"	23 lbs
ACS150-03U-07A5-2	2 HP	7.5 A	KDRB25H	KDRB25HC1	KDRULB25H	53.1 W	H5" x W6" x D4"	8 lbs	KDRULB25HE01	53.1 W	H12.25" x W12.5" x D6.75"	18.5 lbs	KDRULB25HE3R	53.1 W	H11.5" x W10" x D12"	23 lbs
ACS150-03U-09A8-2	3 HP	9.8 A	KDRB26H	KDRB26HC1	KDRULB26H	66.5 W	H5" x W6" x D4"	8 lbs	KDRULB26HE01	66.5 W	H12.25" x W12.5" x D6.75"	18.5 lbs	KDRULB26HE3R	66.5 W	H11.5" x W10" x D12"	23 lbs

3.1.3. High Impedance input reactors for 3-phase Drives - 380-480 V Applications

(back to index)▲

					KDR 5%, UL Listed, Open				KDR 5%, UL Type 1, Enclosure				KDR 5%, UL Type 3R, Enclosure
Inverter part number	Inverter rated power	Input/Output Current	Reactor part number	Reactor part number	Reactor part number	Power dissipation of the reactor	Dimensions (HxWxD)	Weight	Reactor part number	Power dissipation of the reactor	Dimensions (HxWxD)	Weight	Reactor part number	Power dissipation of the reactor	Dimensions (HxWxD)	Weight
ACS150-03U-01A2-4	1/2 HP	1.2 A	KDRA8H	KDRA8HC1	KDRULA8H	12.0 W	H4" x W4.18" x D3.75"	4 lbs	KDRULA8HE01	12 W	H12.25" x W12.5" x D6.75"	14.5 lbs	KDRULA8HE3R	12.0 W	H11.5" x W10" x D12"	19 lbs
ACS150-03U-01A9-4	3/4 HP	1.9 A	KDRA9H	KDRA9HC1	KDRULA9H	23.0 W	H4" x W4.18" x D3.75"	4 lbs	KDRULA9HE01	23 W	H12.25" x W12.5" x D6.75"	14.5 lbs	KDRULA9HE3R	23.0 W	H11.5" x W10" x D12"	19 lbs
ACS150-03U-02A4-4	1 HP	2.4 A	KDRA1H	KDRA1HC1	KDRULA1H	33.0 W	H4" x W4.18" x D3.75"	4 lbs	KDRULA1HE01	33 W	H12.25" x W12.5" x D6.75"	14.5 lbs	KDRULA1HE3R	33.0 W	H11.5" x W10" x D12"	19 lbs
ACS150-03U-03A3-4	3/2 HP	3.3 A	KDRA2H	KDRA2HC1	KDRULA2H	38.0 W	H4" x W4.18" x D3.75"	4 lbs	KDRULA2HE01	38 W	H12.25" x W12.5" x D6.75"	14.5 lbs	KDRULA2HE3R	38.0 W	H11.5" x W10" x D12"	19 lbs
ACS150-03U0-4A1-4	2 HP	4.1 A	KDRA2H	KDRA2HC1	KDRULA2H	38.0 W	H4" x W4.18" x D3.75"	4 lbs	KDRULA2HE01	38 W	H12.25" x W12.5" x D6.75"	14.5 lbs	KDRULA2HE3R	38.0 W	H11.5" x W10" x D12"	19 lbs
ACS150-03U-05A6-4	3 HP	5.6 A	KDRA4H	KDRA4HC1	KDRULA4H	77.0 W	H4" x W4.18" x D3.75"	5 lbs	KDRULA4HE01	77 W	H12.25" x W12.5" x D6.75"	15.5 lbs	KDRULA4HE3R	77.0 W	H11.5" x W10" x D12"	20 lbs
ACS150-03U-08A8-4	5 HP	8.8 A	KDRA5H	KDRA5HC1	KDRULA5H	111.0 W	H4" x W4.18" x D3.75"	5 lbs	KDRULA5HE01	111 W	H12.25" x W12.5" x D6.75"	15.5 lbs	KDRULA5HE3R	111.0 W	H11.5" x W10" x D12"	20 lbs

3.2 Low Impedance input reactors

3.2.1. Low Impedance input reactors for Single Phase Drives - 200-240 V Applications

(back to index)▲

					KDR 5%, UL Listed, Open				KDR 5%, UL Type 1, Enclosure				KDR 5%, UL Type 3R, Enclosure
Inverter part number	Inverter rated power	Input/Output Current	Reactor part number	Reactor part number	Reactor part number	Power dissipation of the reactor	Dimensions (HxWxD)	Weight	Reactor part number	Power dissipation of the reactor	Dimensions (HxWxD)	Weight	Reactor part number	Power dissipation of the reactor	Dimensions (HxWxD)	Weight
ACS150-01U-02A4-2	1/2 HP	2.4 A	KDRA25L	KDRA25LC1	KDRULA25L	7.0 W	H4.00" x W4.18" x D3.75"	4 lbs	KDRULA25LE01	7 W	H12.25" x W12.5" x D6.75"	14.5lbs	KDRULA25LE3R	7.0 W	H4.00" x W4.18" x D3.75"	4 lbs
ACS150-01U-04A7-2	1 HP	4.7 A	KDRA27L	KDRA27LC1	KDRULA27L	11.0 W	H4.00" x W4.18" x D3.75"	4 lbs	KDRULA27LE01	11.0 W	H12.25" x W12.5" x D6.75"	14.5lbs	KDRULA27LE3R	11.0 W	H4.00" x W4.18" x D3.75"	4 lbs
ACS150-01U-06A7-2	3/2 HP	6.7 A	KDRA28L	KDRA28LC1	KDRULA28L	18.0 W	H4.00" x W4.18" x D3.75"	4 lbs	KDRULA28LE01	18.0 W	H12.25" x W12.5" x D6.75"	14.5lbs	KDRULA28LE3R	18.0 W	H4.00" x W4.18" x D3.75"	4 lbs
ACS150-01U-07A5-2	2 HP	7.5 A	KDRB22L	KDRB22LC1	KDRULB22L	21.0 W	H4.00" x W4.18" x D3.75"	4 lbs	KDRULB22LE01	21.0 W	H12.25" x W12.5" x D6.75"	18.5lbs	KDRULB22LE3R	21.0 W	H4.00" x W4.18" x D3.75"	4 lbs
ACS150-01U-09A8-2	3 HP	9.8 A	KDRB22L	KDRB22LC1	KDRULB22L	29.0 W	H4.00" x W4.18" x D3.75"	4 lbs	KDRULB22LE01	29.0 W	H12.25" x W12.5" x D6.75"	18.5lbs	KDRULB22LE3R	29.0 W	H4.00" x W4.18" x D3.75"	4 lbs

3.2.2. Low Impedance input reactors for 3-phase Drives - 200-240 V Applications

(back to index)▲

					KDR 5%, UL Listed, Open				KDR 5%, UL Type 1, Enclosure				KDR 5%, UL Type 3R, Enclosure
Inverter part number	Inverter rated power	Input/Output Current	Reactor part number	Reactor part number	Reactor part number	Power dissipation of the reactor	Dimensions (HxWxD)	Weight	Reactor part number	Power dissipation of the reactor	Dimensions (HxWxD)	Weight	Reactor part number	Power dissipation of the reactor	Dimensions (HxWxD)	Weight
ACS150-03U-02A4-2	1/2 HP	2.4 A	KDRA25L	KDRA25LC1	KDRULA25L	11.0 W	H4" x W4.18" x D3.75"	4 lbs	KDRULA25LE01	11.0 W	H12.25" x W12.5" x D6.75"	14.5lbs	KDRULA25LE3R	11.0 W	H11.5" x W10" x D12"	19 lbs
ACS150-03U-03A5-2	3/4 HP	3.5 A	KDRA26L	KDRA26LC1	KDRULA26L	18.0 W	H4" x W4.18" x D3.75"	4 lbs	KDRULA26LE01	18.0 W	H12.25" x W12.5" x D6.75"	14.5lbs	KDRULA26LE3R	18.0 W	H11.5" x W10" x D12"	19 lbs
ACS150-03U-04A7-2	1 HP	4.7 A	KDRA27L	KDRA27LC1	KDRULA27L	21.0 W	H4" x W4.18" x D3.75"	4 lbs	KDRULA27LE01	21.0 W	H12.25" x W12.5" x D6.75"	14.5lbs	KDRULA27LE3R	21.0 W	H11.5" x W10" x D12"	19 lbs
ACS150-03U-06A7-2	1,5 HP	6.7 A	KDRA28L	KDRA28LC1	KDRULA28L	29.0 W	H4" x W4.18" x D3.75"	4 lbs	KDRULA28LE01	29.0 W	H12.25" x W12.5" x D6.75"	18.5lbs	KDRULA28LE3R	29.0 W	H11.5" x W10" x D12"	19 lbs
ACS150-03U-07A5-2	2 HP	7.5 A	KDRB22L	KDRB22LC1	KDRULB22L	38.0 W	H5" x W6" x D4"	8 lbs	KDRULB22LE01	38.0 W	H12.25" x W12.5" x D6.75"	18.5lbs	KDRULB22LE3R	38.0 W	H11.5" x W10" x D12"	23 lbs
ACS150-03U-09A8-2	3 HP	9.8 A	KDRB22L	KDRB22LC1	KDRULB22L	38.0 W	H5" x W6" x D4"	8 lbs	KDRULB22LE01	38.0 W	H12.25" x W12.5" x D6.75"	18.5lbs	KDRULB22LE3R	38.0 W	H11.5" x W10" x D12"	23 lbs

3.2.3. Low Impedance input reactors for 3-phase Drives - 380-480 V Applications

(back to index)▲

					KDR 5%, UL Listed, Open				KDR 5%, UL Type 1, Enclosure				KDR 5%, UL Type 3R, Enclosure
Inverter part number	Inverter rated power	Input/Output Current	Reactor part number	Reactor part number	Reactor part number	Power dissipation of the reactor	Dimensions (HxWxD)	Weight	Reactor part number	Power dissipation of the reactor	Dimensions (HxWxD)	Weight	Reactor part number	Power dissipation of the reactor	Dimensions (HxWxD)	Weight
ACS150-03U-01A2-4	1/2 HP	1.2 A	KDRA8L	KDRA8LC1	KDRULA8L	10.4 W	H4" x W4.18" x D3.75"	4 lbs	KDRULA8LE01	10.4 W	H12.25" x W12.5" x D6.75"	14.5lbs	KDRULA8LE3R	10.4 W	H11.5" x W10" x D12"	19 lbs
ACS150-03U-01A9-4	3/4 HP	1.9 A	KDRA9L	KDRA9LC1	KDRULA9L	17.0 W	H4" x W4.18" x D3.75"	4 lbs	KDRULA9LE01	17.0 W	H12.25" x W12.5" x D6.75"	14.5lbs	KDRULA9LE3R	17.0 W	H11.5" x W10" x D12"	19 lbs
ACS150-03U-02A4-4	1 HP	2.4 A	KDRA1L	KDRA1LC1	KDRULA1L	19.0 W	H4" x W4.18" x D3.75"	4 lbs	KDRULA1LE01	19.0 W	H12.25" x W12.5" x D6.75"	14.5lbs	KDRULA1LE3R	19.0 W	H11.5" x W10" x D12"	19 lbs
ACS150-03U-03A3-4	3/2 HP	3.3 A	KDRA1L	KDRA1LC1	KDRULA1L	19.0 W	H4" x W4.18" x D3.75"	4 lbs	KDRULA1LE01	19.0 W	H12.25" x W12.5" x D6.75"	14.5lbs	KDRULA1LE3R	19.0 W	H11.5" x W10" x D12"	19 lbs
ACS150-03U-04A1-4	2 HP	4.1 A	KDRA1L	KDRA1LC1	KDRULA1L	19.0 W	H4" x W4.18" x D3.75"	4 lbs	KDRULA1LE01	19.0 W	H12.25" x W12.5" x D6.75"	14.5lbs	KDRULA1LE3R	19.0 W	H11.5" x W10" x D12"	19 lbs
ACS150-03U-05A6-4	3 HP	5.6 A	KDRA3L	KDRA3LC1	KDRULA3L	49.0 W	H4" x W4.18" x D3.75"	4 lbs	KDRULA3LE01	49.0 W	H12.25" x W12.5" x D6.75"	14.5lbs	KDRULA3LE3R	49.0 W	H11.5" x W10" x D12"	19 lbs
ACS150-03U-08A8-4	5 HP	8.8 A	KDRA4L	KDRA4LC1	KDRULA4L	40.0 W	H4" x W4.18" x D3.75"	4 lbs	KDRULA4LE01	40.0 W	H12.25" x W12.5" x D6.75"	14.5lbs	KDRULA4LE3R	40.0 W	H11.5" x W10" x D12"	19 lbs

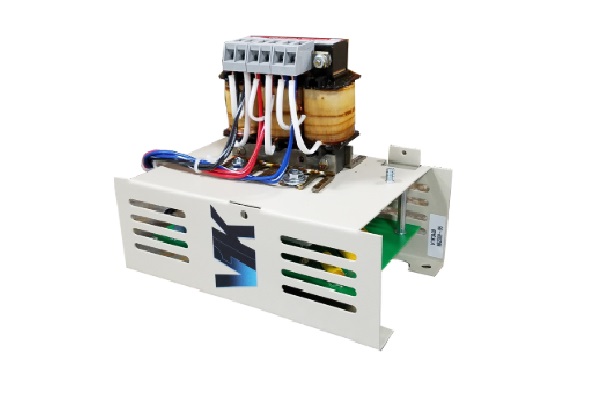

4. dv/dt Output Filters

4.1. dv/dt Output Filters 3-Phase Drive - 380-480 V Applications

(back to index)▲

				V1K UL Open				V1K UL Type 1 Enclosure				V1K UL Type 3R Enclosure
Inverter part number	Inverter rated power	Input/Output Current	Reactor part number	Power dissipation of the reactor	Dimensions (HxWxD)	Weight	Reactor part number	Power dissipation of the reactor	Dimensions (HxWxD)	Weight	Reactor part number	Power dissipation of the reactor	Dimensions (HxWxD)	Weight
ACS150-03U-02A4-2	1/2 HP	2.4 A	V1K3A00	75 W	H9.00" x W5.50" x D7.25"	8 lbs	V1K3A01	75 W	H9.00" x W5.50" x D10.00"	11 lbs	V1K3A03	75 W	11.45" x 10.00" x 12.00	25 lbs
ACS150-03U-04A7-2	1 HP	4.7 A	V1K6A00	80 W	H9.00" x W5.50" x D7.25"	8 lbs	V1K6A01	80 W	H9.00" x W5.50" x D10.00"	11 lbs	V1K6A03	80 W	11.45" x 10.00" x 12.00	25 lbs
ACS150-03U-06A7-2	3/2 HP	6.7 A	V1K6A00	80 W	H9.00" x W5.50" x D7.25"	8 lbs	V1K6A01	80 W	H9.00" x W5.50" x D10.00"	11 lbs	V1K6A03	80 W	11.45" x 10.00" x 12.00	25 lbs
ACS150-03U-07A5-2	2 HP	7.5 A	V1K8A00	90 W	H9.00" x W5.50" x D7.25"	8 lbs	V1K8A01	90 W	H9.00" x W5.50" x D10.00"	11 lbs	V1K8A03	90 W	11.45" x 10.00" x 12.00	25 lbs
ACS150-03U-09A8-2	3 HP	9.8 A	V1K12A00	95 W	H9.00" x W5.50" x D7.25"	8 lbs	V1K12A01	95 W	H9.00" x W5.50" x D10.00"	11 lbs	V1K12A03	95 W	11.45" x 10.00" x 12.00	25 lbs

4.2. dv/dt Output Filters 3-Phase Drive - 200-240 V Applications

(back to index)▲

				V1K UL Open				V1K UL Type 1 Enclosure				V1K UL Type 3R Enclosure
Inverter part number	Inverter rated power	Input/Output Current	Reactor part number	Power dissipation of the reactor	Dimensions (HxWxD)	Weight	Reactor part number	Power dissipation of the reactor	Dimensions (HxWxD)	Weight	Reactor part number	Power dissipation of the reactor	Dimensions (HxWxD)	Weight
ACS150-03U-02A4-2	1/2 HP	2.4 A	V1K3A00	75 W	H9.00" x W5.50" x D7.25"	8 lbs	V1K3A01	75 W	H9.00" x W5.50" x D10.00"	11 lbs	V1K3A03	75 W	11.45" x 10.00" x 12.00	25 lbs
ACS150-03U-03A5-2	3/4 HP	3.5 A	V1K4A00	75 W	H9.00" x W5.50" x D7.25"	8 lbs	V1K4A01	75 W	H9.00" x W5.50" x D10.00"	11 lbs	V1K4A03	75 W	11.45" x 10.00" x 12.00	25 lbs
ACS150-03U-04A7-2	1 HP	4.7 A	V1K6A00	80 W	H9.00" x W5.50" x D7.25"	8 lbs	V1K6A01	80 W	H9.00" x W5.50" x D10.00"	11 lbs	V1K6A03	80 W	11.45" x 10.00" x 12.00	25 lbs
ACS150-03U-06A7-2	3/2 HP	6.7 A	V1K6A00	80 W	H9.00" x W5.50" x D7.25"	8 lbs	V1K6A01	80 W	H9.00" x W5.50" x D10.00"	11 lbs	V1K6A03	80 W	11.45" x 10.00" x 12.00	25 lbs
ACS150-03U-07A5-2	2 HP	7.5 A	V1K8A00	90 W	H9.00" x W5.50" x D7.25"	8 lbs	V1K8A01	90 W	H9.00" x W5.50" x D10.00"	11 lbs	V1K8A03	90 W	11.45" x 10.00" x 12.00	25 lbs
ACS150-03U-09A8-2	3 HP	9.8 A	V1K12A00	95 W	H9.00" x W5.50" x D7.25"	8 lbs	V1K12A01	95 W	H9.00" x W5.50" x D10.00"	11 lbs	V1K12A03	95 W	11.45" x 10.00" x 12.00	25 lbs

4.3. dv/dt Output Filters 3-Phase Drive - 380-480 V Applications

(back to index)▲

				V1K UL Open				V1K UL Type 1 Enclosure				V1K UL Type 3R Enclosure
Inverter part number	Inverter rated power	Input/Output Current	Reactor part number	Power dissipation of the reactor	Dimensions (HxWxD)	Weight	Reactor part number	Power dissipation of the reactor	Dimensions (HxWxD)	Weight	Reactor part number	Power dissipation of the reactor	Dimensions (HxWxD)	Weight
ACS150-03U-01A2-4	1/2 HP	1.2 A	-	-	-	-	-	-	-	-	-	-	-	-
ACS150-03U-01A9-4	3/4 HP	1.9 A	V1K2A00	75 W	H9.00" x W5.50" x D7.25"	8 lbs	V1K2A01	75 W	H9.00" x W5.50" x D10.00"	11 lbs	V1K2A03	11 W	11.45" x 10.00" x 12.00	25 lbs
ACS150-03U-02A4-4	1 HP	2.4 A	V1K3A00	75 W	H9.00" x W5.50" x D7.25"	8 lbs	V1K3A01	75 W	H9.00" x W5.50" x D10.00"	11 lbs	V1K3A03	11 W	11.45" x 10.00" x 12.00	25 lbs
ACS150-03U-03A3-4	3/2 HP	3.3 A	V1K3A00	75 W	H9.00" x W5.50" x D7.25"	8 lbs	V1K3A01	75 W	H9.00" x W5.50" x D10.00"	11 lbs	V1K3A03	11 W	11.45" x 10.00" x 12.00	25 lbs
ACS150-03U-04A1-4	2 HP	4.1 A	V1K4A00	75 W	H9.00" x W5.50" x D7.25"	8 lbs	V1K4A01	75 W	H9.00" x W5.50" x D10.00"	11 lbs	V1K4A03	11 W	11.45" x 10.00" x 12.00	25 lbs
ACS150-03U-05A6-4	3 HP	5.6 A	V1K6A00	80 W	H9.00" x W5.50" x D7.25"	8 lbs	V1K6A01	80 W	H9.00" x W5.50" x D10.00"	11 lbs	V1K6A03	11 W	11.45" x 10.00" x 12.00	25 lbs
ACS150-03U-08A8-4	5 HP	8.8 A	V1K8A00	90 W	H9.00" x W5.50" x D7.25"	8 lbs	V1K8A01	90 W	H9.00" x W5.50" x D10.00"	11 lbs	V1K8A03	11 W	11.45" x 10.00" x 12.00	25 lbs

5. Documentation

(back to index)▲

ABB ACS150 Drives Catalogue
